NOTE: Ford transmission application--early 98 and older is E4OD; late 98 and newer is 4R100

B&M SuperCooler
Prevent automatic transmission damage from overheating. B&M's stacked plate design provides more efficient cooling than tube-and-fin types. Provides a larger cooling surface than Ford's auxilliary trans cooler. 90% of automatic transmission failure are due to fluid overheating. Includes mounting hardware and hose. Rated to 24,000 lbs GVW. Measures 11"x7"x1 1/2".
B&M SuperCooler 70264: $75.00

External Transmission Filter Kit
These kits allow the installation of a Ford one quart spin-on by-pass filter onto the cooler return line or auxiliary cooler hose. This protects the transmission lube circuit from debris which may pass through the cooler. Kit includes filter mount, all necessary fittings and hose, and a Motorcraft FL 1A or equivalent* oil filter. Please indicate cooler line outside diameter when ordering.
Filter Kit for Cooler Hose Installation: $58.00
Filter Kit for Steel Line Installation: $70.00
*Kits for GM available with AC PF-2; Dodge Mopar L-55
You can subsitute a syntheic oil filter for an addtional $5.10.
See TSB #00-3-8 for more info.

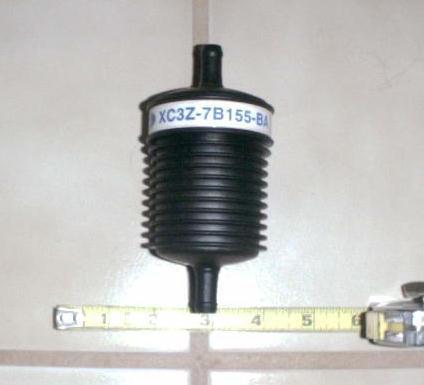

Ford's external filter element.

Automatic Transmission Pan Drain Kit
Allows you to drain the transmission fluid without dropping the pan. Prevents spills by draining before removing the pan to service the filter. Requires drilling a 1/2 inch hole into the pan--check for proper clearance. Includes sealing washers for the bulkhead fitting and an 1/8 inch pipe plug.
Can be used to mount an ATF temp sender in the pan.
Auto Trans Drain Kit: $12.00

BD Engine Brake
Transmission Controls
PressureLoc:
Plugs into your transmission to increase apply pressures and reduces slippage, heat and wear when using an exhaust brake. By design, there is very low control and apply pressure in the E4OD/4R100 transmissions at idle or low speeds. Slippage can occur on deceleration when using an exhaust brake. The PressureLoc boosts pressures whenever the torque converter clutch is engaged.*
For Ford and Dodge transmissions: $325.00
*Additional torque conveter controls may be required.
AutoLoc Controller:
For use with the BD Engine Brake, the AutoLoc keeps the torque converter clutch locked up while the exhaust brake is applied. This helps transmit engine braking to the rear wheels as the torque converter clutch typically unlocks when the brakes are applied. For Ford, Dodge and GMC: $275.00
TorqLoc:
Allows the drive to have control of the torque converter lock-up clutch. One position prevents the clutch from unlocking when accelerating or climbing hills, which prevents slippage and overheating. Another position returns the truck to stoke configuration. The third position allows the TorqLoc to act as the AutoLoc described above. For Ford, Dodge and GMC: $325.00
Transmission Valve Body:
For Dodge automatic transmission. Improves both light and full throttle shifts, and increases torque converter apply pressure. Corrects torque converter drain back problem. $425.00
Transmission Cooler with Fan:
An auxiliary tube and fin transmission cooler with an electric fan, which can be activated manually or thermatically to reduce fluid temperatures when towing or using an exhaust brake. $350.00

Mag-Hytec
Automatic Transmission Pans
Finned aircraft aluminum construction and extra-deep capacity*
help keep your transmission cool and extend its life.
Includes hardware and gaskets, trans temp sender port and drain.
*may be too low for off-road applications--check clearances
Dodge 727 Deep: $230.00
Dodge 727 Extra-Deep: $265.00
Ford E4OD/4R100: $325.00
GMC 4L80E: $300.00
Differential Covers
Same features as transmission pans above, plus magnetic drain plug to capture debris
and a dipstick for mess-free fluid level inspection.
Check for adequate clearance to sway bars and steering.
Dana 44: $215.00
Dana 60/80: $235.00
Dana 70: $230.00
Dodge 12-Bolt/9.25": $240.00
Ford 10-Bolt/8.8": $230.00
Ford 12-Bolt/9.75": $240.00
Ford 12-Bolt/10.25/10.5": $240.00
GMC 10-Bolt/8.5": $230.00
GMC 14-Bolt/9.5": $245.00
GMC 14-bolt/10.5": $245.00
GMC 14-Bolt/11.5": $265.00

To order any of the above items, please E-mail me at: dieselmann@intellidog.com
Include the name of the item(s), quantity, and your ZIP code for calculating shipping cost.
All prices are US dollars and DO NOT include shipping and handling;
California residents add 7.00% sales tax.
